How to create Wave texture bowl in siemens NX-042



How to create Wave texture bowl in siemens NX



    Step #1.Create new sketch on the yz plane

    Step #2 .create point set (13 points)

    Step #3.sketch on the yz plane and reference the points

    Step #4.Revolve

    Step #5.sketch on the xz plane and extrude


    Step #6.swept

    Step #7.create new sketch on the yz plane and revolve

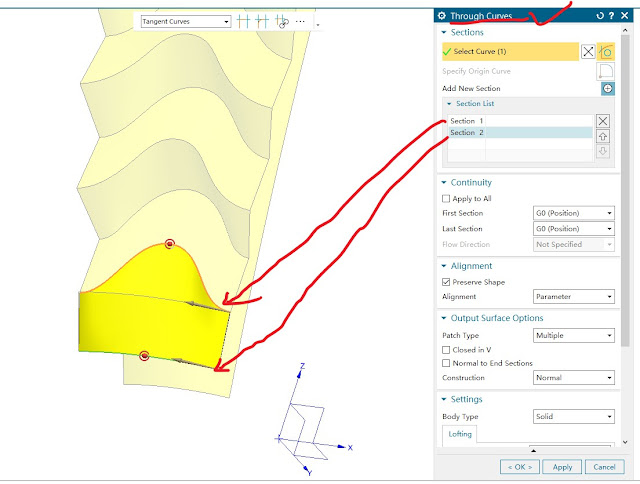

    Step #8.create surface with through curves

    Step #9.trim sheet


    Step #10.through curves and bounded plane



    Step #11.sew

    Step #12.edge blend

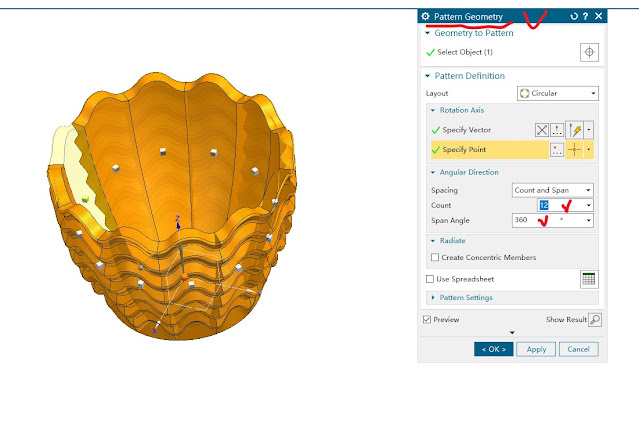

    Step #13.pattern geometry


    Step #14.extude

    Step #15.unite

    Step #16.Finish
