How to create Curved massager in siemens NX

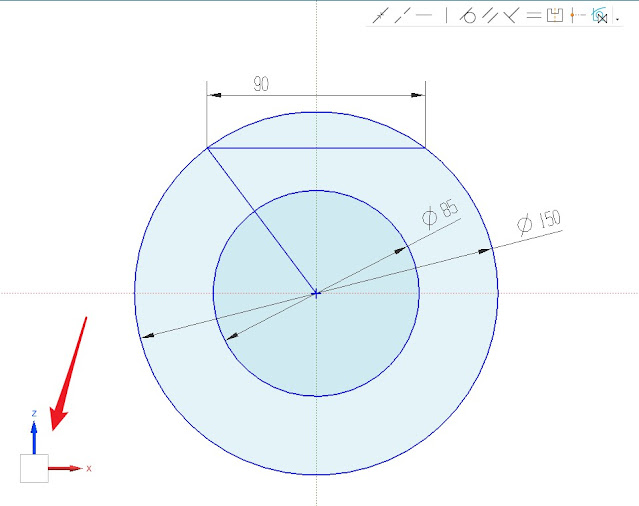

    Step #1.sketch on the xz Plane

    Step #2.sketch on the xy plane

    Step #3.revolve

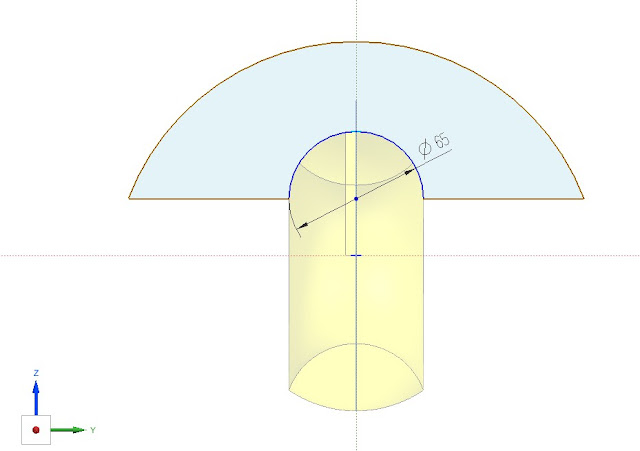

    Step #4.sketch on the yz plane

    Step #5.extrude--cut

    Step #6.create intersection curve

    Step #7.Trim sheet

    Step #8.new sketch on the yz plane

    Step #9.extrude two edges

    Step #10.fill surface

    Step #11.Mirror geometry

    Step #12.Sew

    Step #13.Finish

Detailed video tutorial：
