How to create a Anti-scalding water cup in Siemens NX-040



How to create a Anti-scalding water cup in Siemens NX

    Step #1.Create new sketch on the yz  plane

    Step #2.Revolve

    Step #3.Shell--2mm

    Step #4.copy face --offset surface

    Step #5.Create new sketch on xy plane ---studio spline

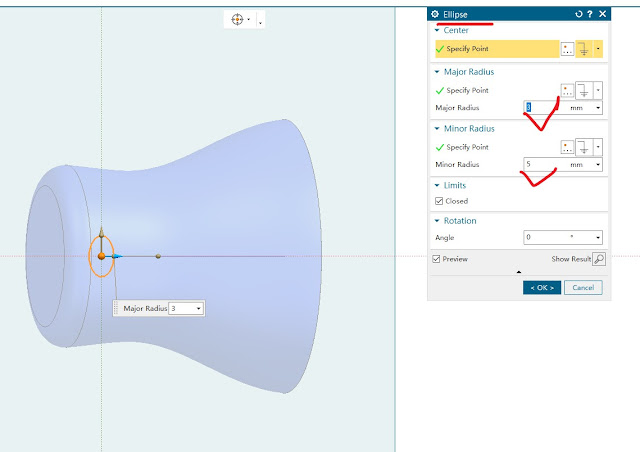

    Step #6.Create sketch on the curve

    Step #7.Swept

    Step #8.Trim body

    Step #9.Pattern geometry

    Step #10.Unite

    Step #11.Create a line

    Step #12.surface---Global shaping

    Step #13.Edge  blend

    Step #14.Face blend

    Step #15.Finish
