How to create Windmills in solidworks-013

 How to create windmills in solidworks



 Windmills are a very common toy, I wonder if you played with paper windmills as a child? Today we are going to model a windmill in SolidWorks software.

    Step #1.Sketch on the front plane,Detailed dimensions.

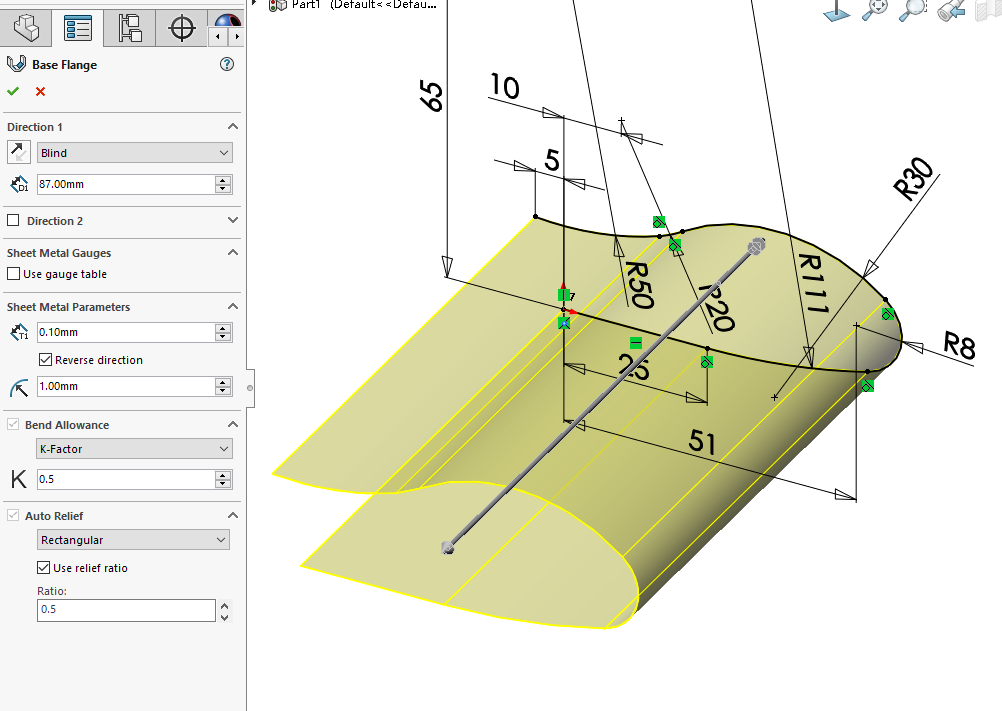

    Step #2.Base flange

    Step #3.Unfold

    Step #4.sketch on the unfold plane,Detailed dimensions below.

    Step #5. Extruded Cut

    Step #6.Fold

    Step #7.Create new axis

    Step #8.cirpattern

    Step #9. Extruded Cut

    Step #10.Unfold all
