 How to create Simple sheet metal parts in solidworks

    Step #1.create a new sketch on the top plane,Detailed dimensions are shown below

    Step #2.Base Flange--1mm

    Step #3.create a line on the base flange plane

    Step #4.sketched bend

    Step #5.create a line on the base flange plane

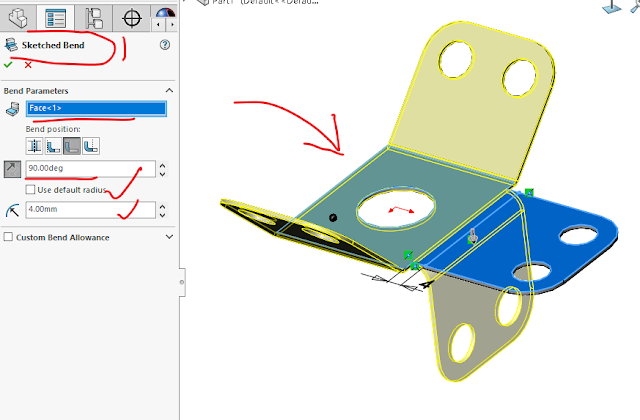

    Step #6.sketched bend

    Step #7.create a line on the base flange plane

    Step #8.sketched bend

    Step #9.Fillet--2mm

    Step #10.sheet metal gusset

    Step #11.sheet metal gusset

    Step #12.Mirror

    Step #12.Fillet
