 How to create lampshade in solidworks

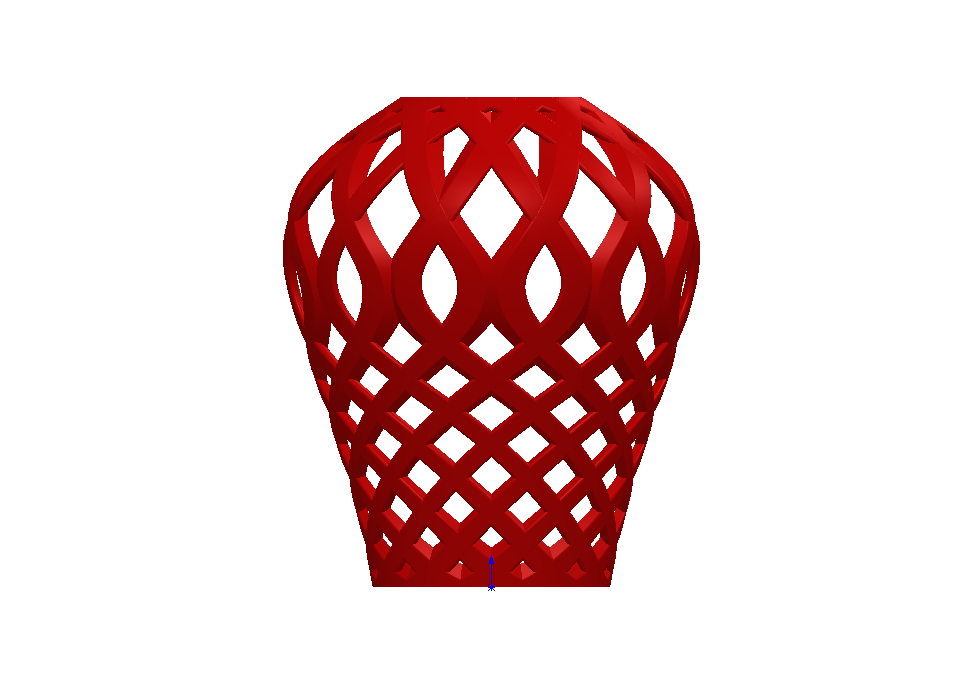

    This lampshade, below, is an openwork shape. Models such as these are relatively easy to model using the surface commands of the solidworks parametric modeling software. Here is a step-by-step guide to creating this lampshade.

    Step #1.Create a sketch on the front plane,Detailed dimensions are shown below：

    Step #2. Revolved Boss/Base

    Step #3.Create a sketch on the front plane,Detailed dimensions are shown below：

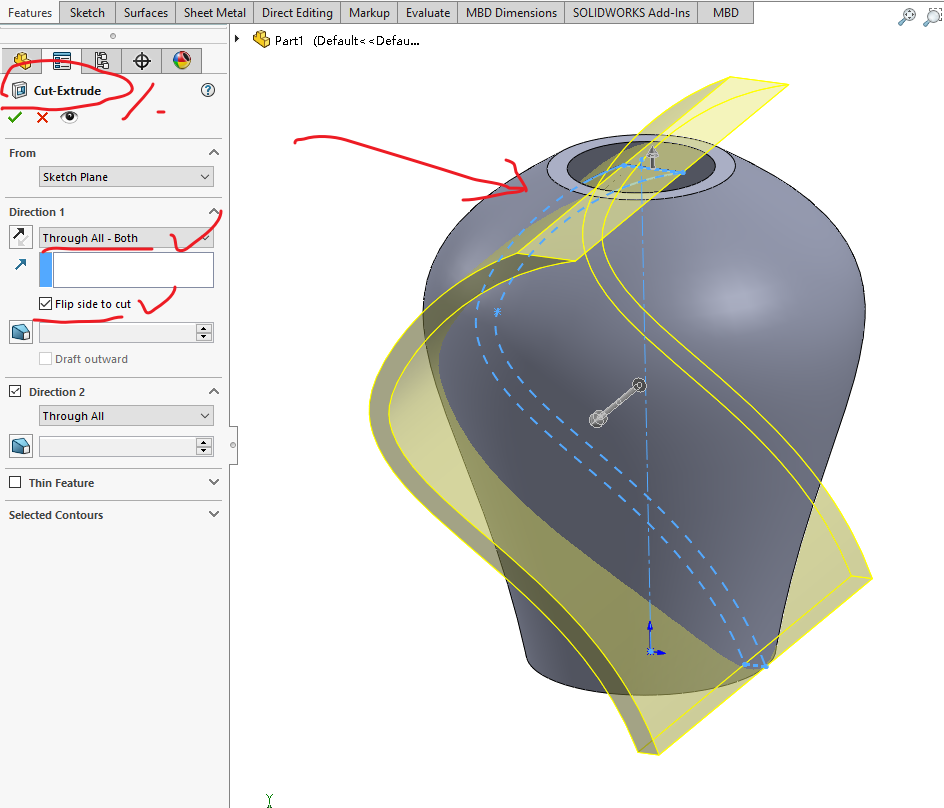

     Step #4.Extruded Cut--through all-both



 Step #5.Fillet

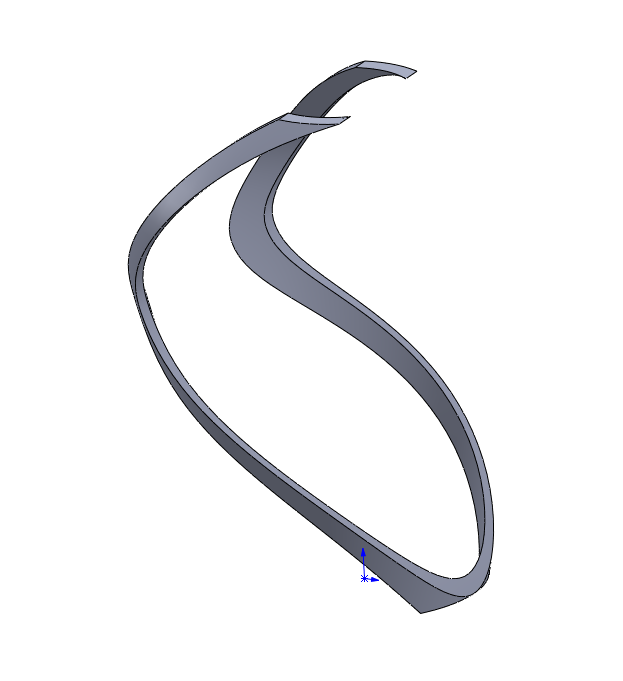

 Step #6.  Circular Pattern--30/16.
