 How to create a trumpet in solidworks

Below are the detailed modeling steps:

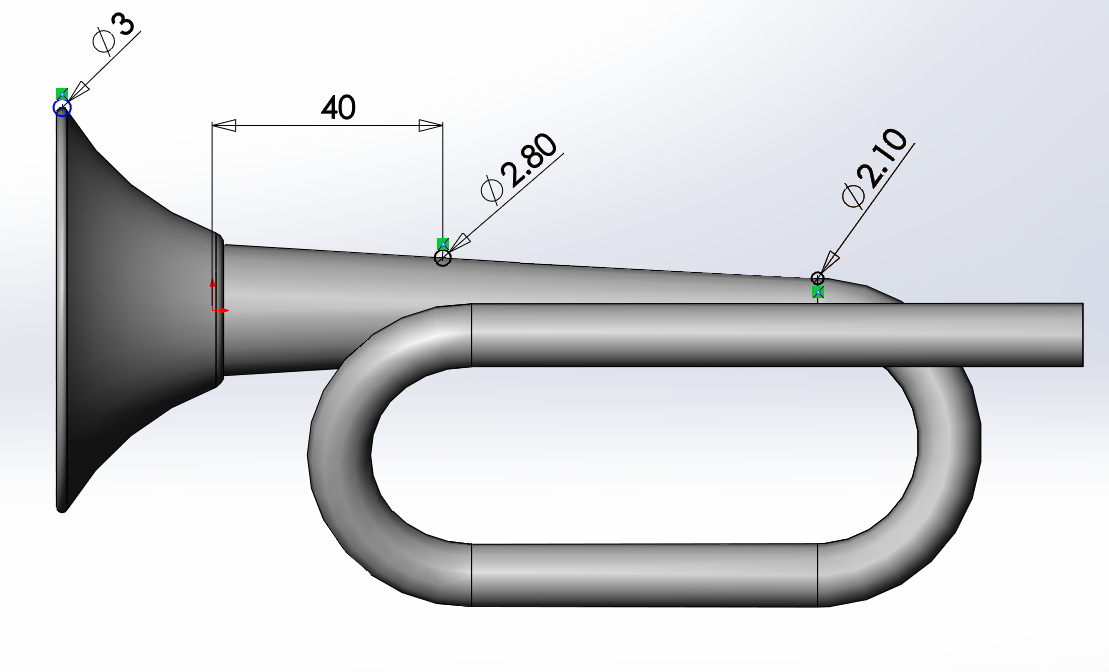

    Step #1.sketch on the right plane.Detailed dimensions are shown below

    Step #2.Create a new plane1.

    Step #3.create new sketch on the plane1.Detailed dimensions are shown below

    Step #4.create Loft,Detailed parameter settings are as follows.

    Step #5.Go to 3D Sketch and sketch the following graphic.

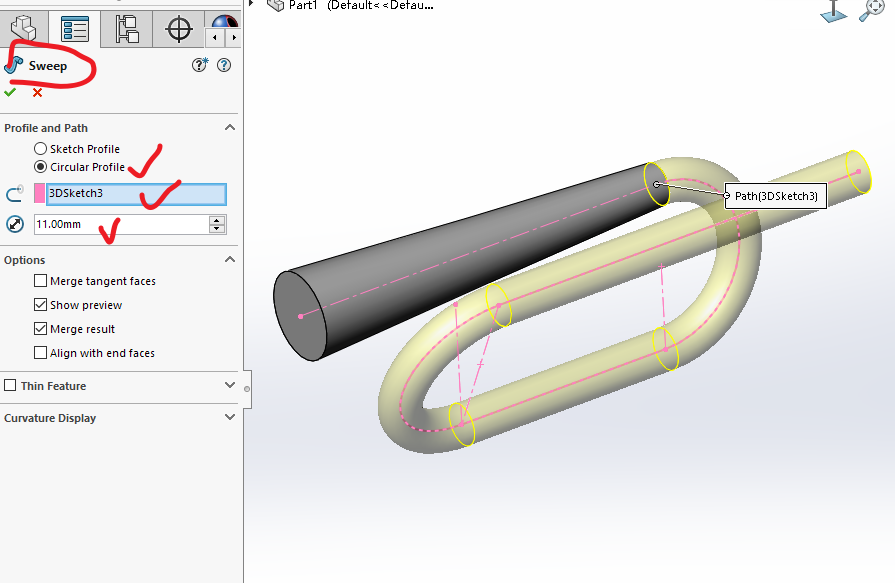

    Step #6.Sweep

   Step #7.sketch on the front plane.Detailed dimensions are shown below

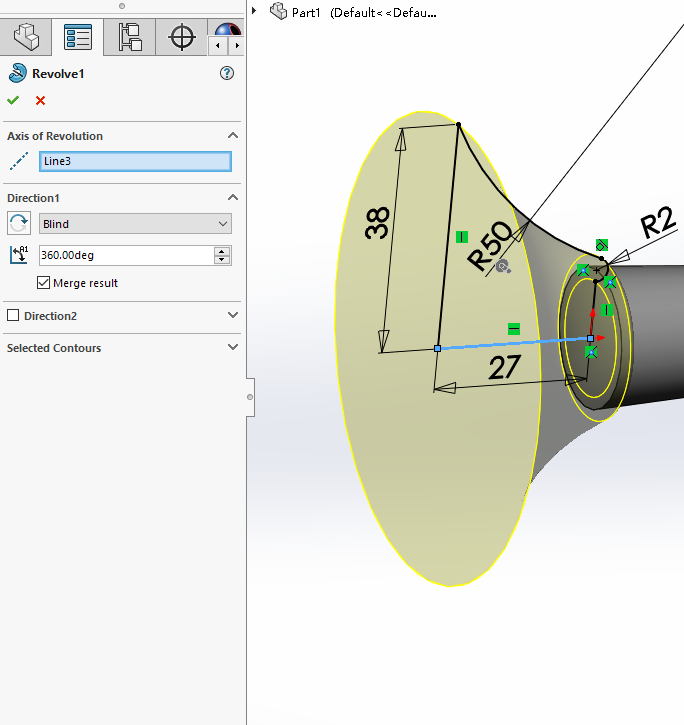

   Step #8.Revolve

    Step #9.Fillet

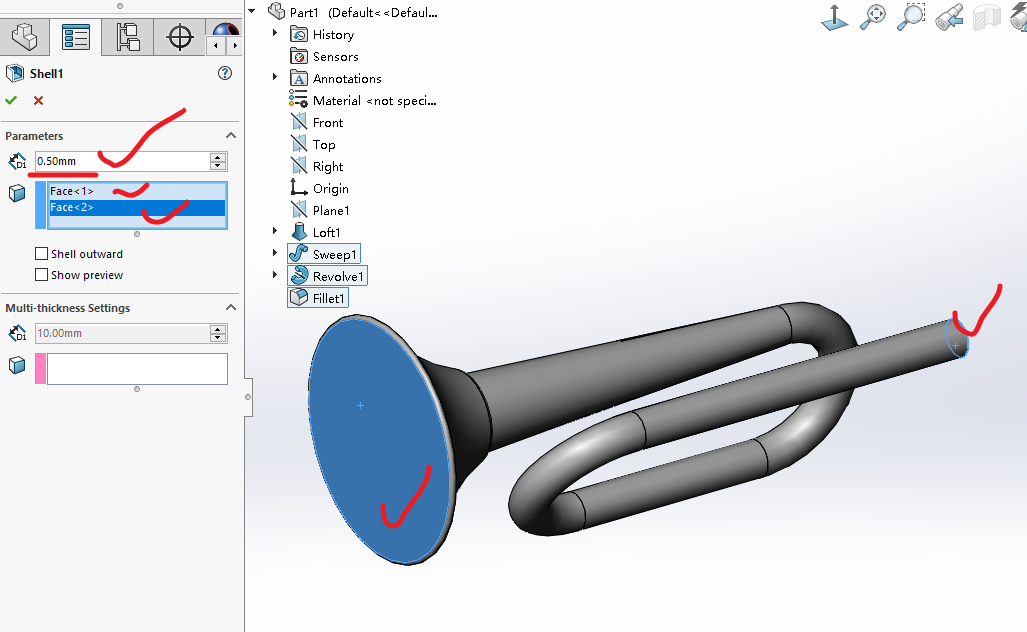

    Step #10.Shell

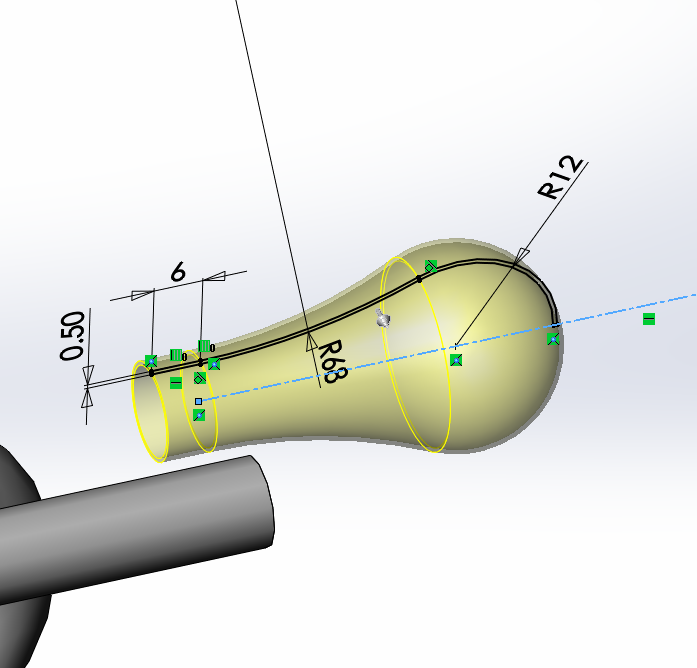

    Step #11.Sketch on the front plane,Detailed dimensions are shown below,and Revolve.

    Step #12.Sketch on the front plane,Detailed dimensions are shown below,and Revolve.

    Step #13.Finish
