 How to create clamp in solidworks with sheet metal

Let’s start the tutorial directly.

    Step #1.On the top plane, sketch the following

    Step #2.Base Flange;

    Step #3.select the plane of the base flange ,and sketch the following

   Step #4.Cut-Extrude

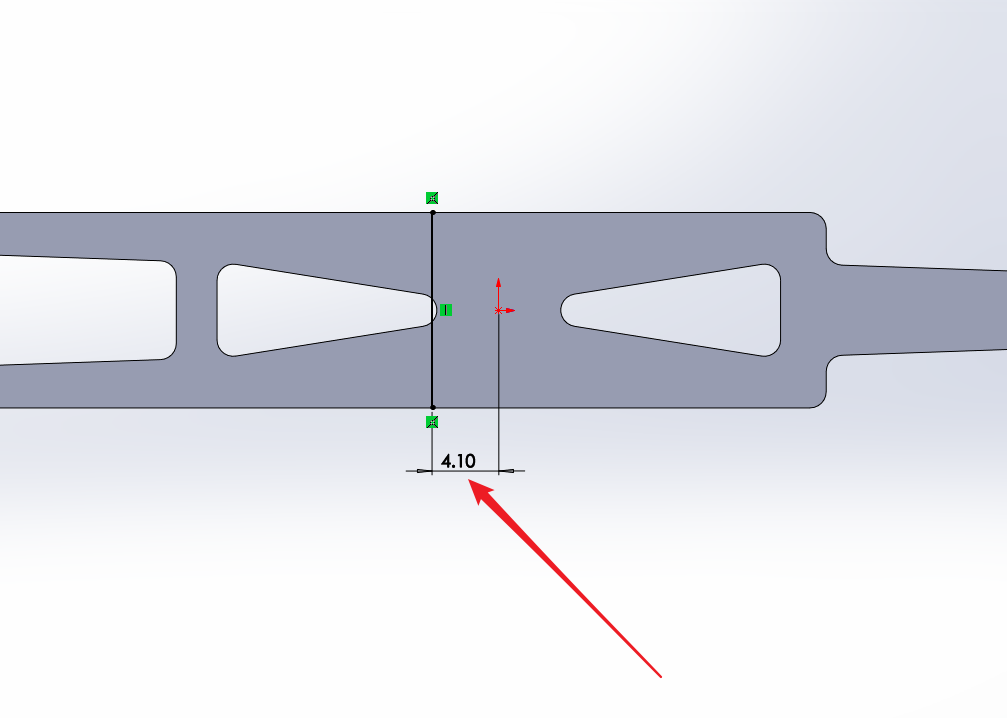

   Step #5.select the plane of the base flange ,and sketch the following

   Step #6.Cut-Extrude

   Step #7.Fillet-1mm.

   Step #8.Sketch a straight line as shown below on the sheet metal surface

   Step #9.Sketched bend

   Step #10.Sketch a straight line as shown below on the sheet metal surface

   Step #11.Sketched bend

   Step #12.Sketch a straight line as shown below on the sheet metal surface

   Step #13.Sketched bend

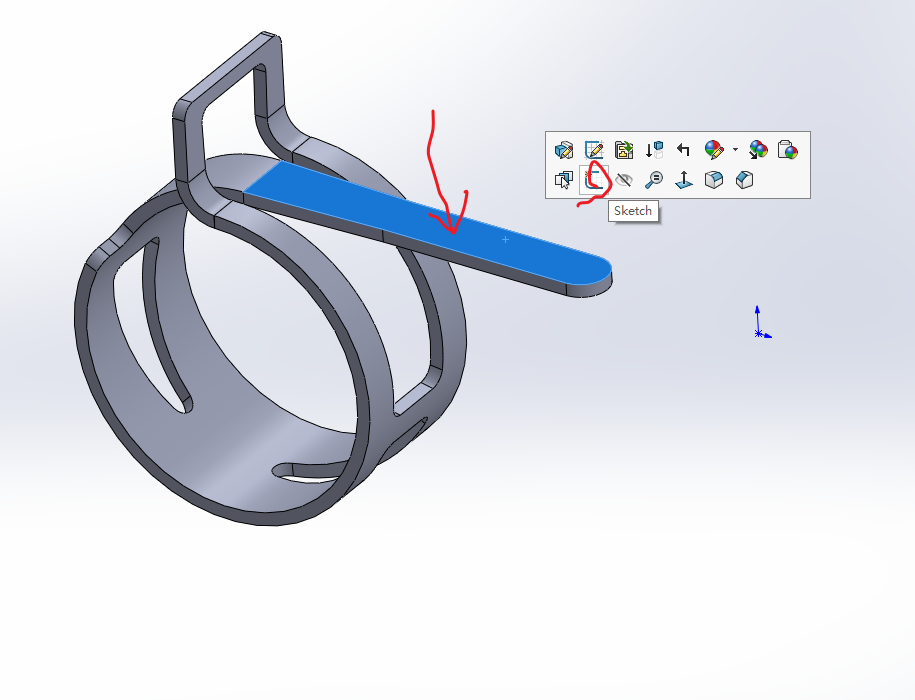

   Step #14.Sketch a straight line as shown below on the sheet metal surface

   Step #15.Sketched bend
