 How to create Cube Pipes in solidworks

A cube pipe is a pipe that is connected in the first place.

Here's a step-by-step guide to creating this cube pipe shape.

    Step #1.Creates a rectange on the front plane.

    Step #2. Extruded Boss/Base --100mm

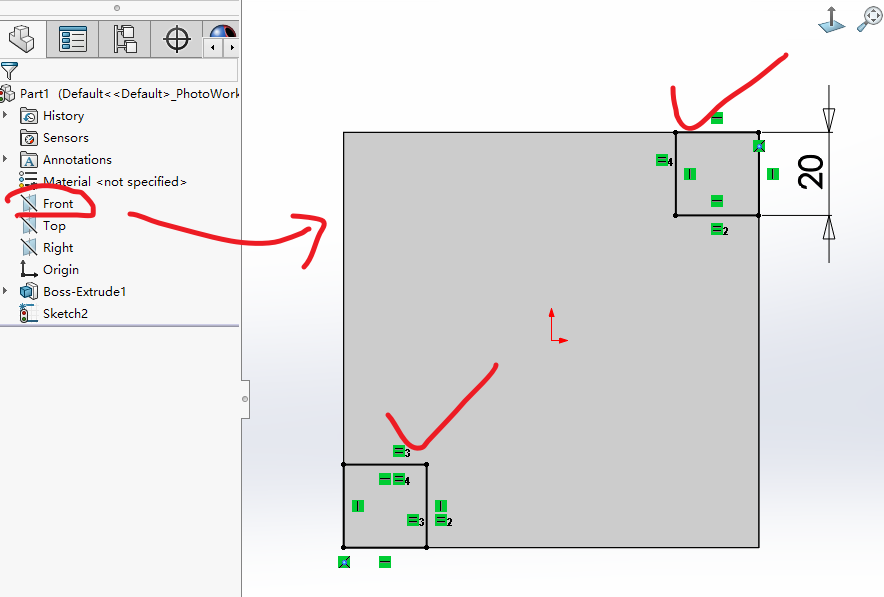

    Step #3.Creates two rectange on the front plane.

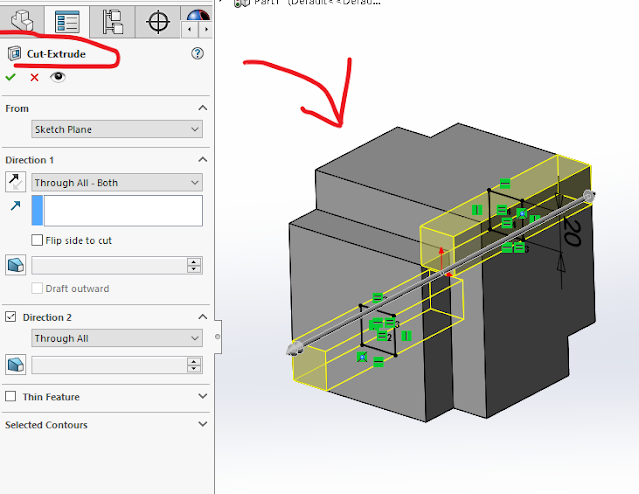

 Step #4. Extruded Cut --through all-both

Step #5.Creates two rectange on the TOP plane.

Step #6. Extruded Cut --through all-both

Step #7.Creates two rectange on the Right plane.

Step #8. Extruded Cut --through all-both

Step #9.Fillet -10.

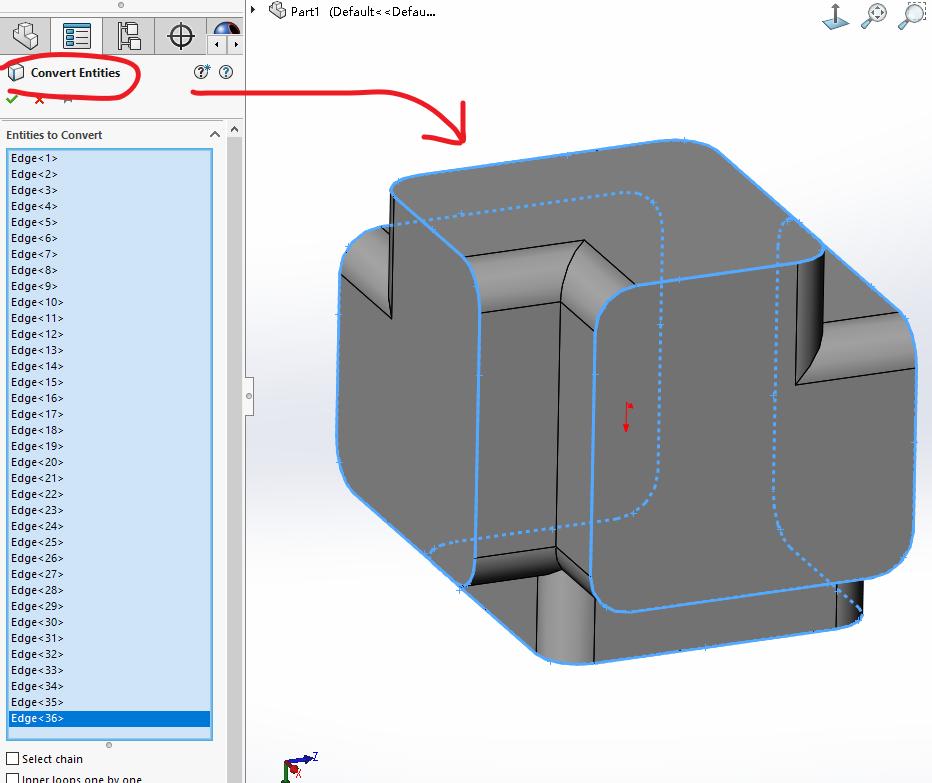

Step #10.3D sketch--convert entities

Step #11.Delete body

Step #12. Swept Boss/Base-10mm.
