 How to create simplicity wine corkscrew in solidworks

A corkscrew is a tool for drawing corks from wine bottles and other household bottles that may be sealed with corks.

Today we will work together to create this wine corkscrew modeling in solidworks software.

Step #1.On top plane,sketch

Step #2.Helix/spiral,pitch:10; revolutions:3; start angle:0;clockwise.

Step #3.On the top plane, redraw a circle of diameter 7

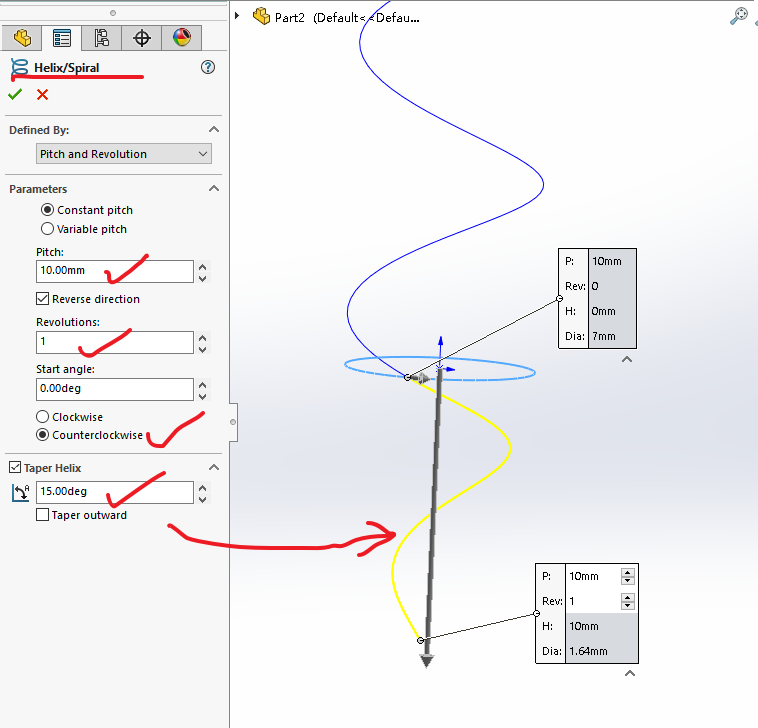

Step #4..Helix/spiral,pitch:10; revolutions:1; start angle:15;counterclockwise.

Step #5.Sketch the following on the front plane.

Step #6.Go to the 3D sketch and convert both spirals and one sketch drawn above, Convert Entities .And using a spline curve, create a curve tangent to the endpoints of the two curves, as shown below:

Step #7.create new plane1.

Step #8.create sketch on the new plane 1.

Step #9.create new plane 2

Step #10.create sketch on the new plane2.

Step #11.create new plane 3

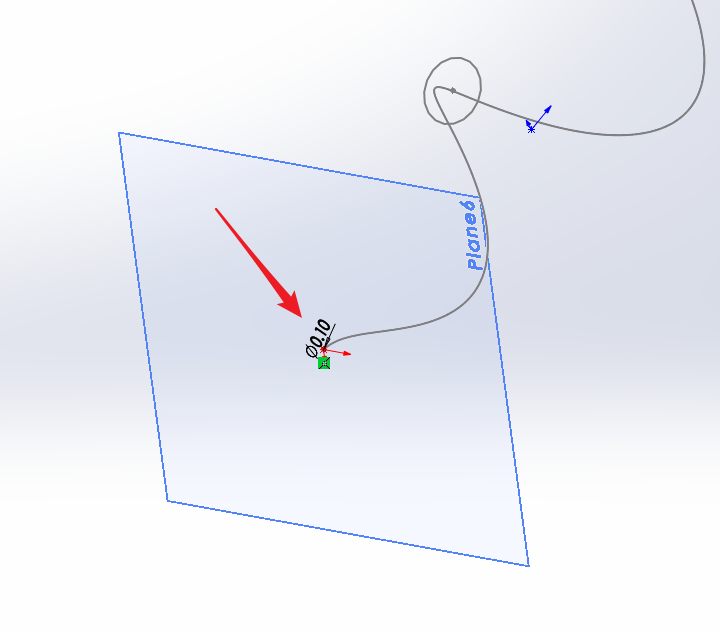

Step #12.create sketch on the new plane3

Step #13.create Loft

.

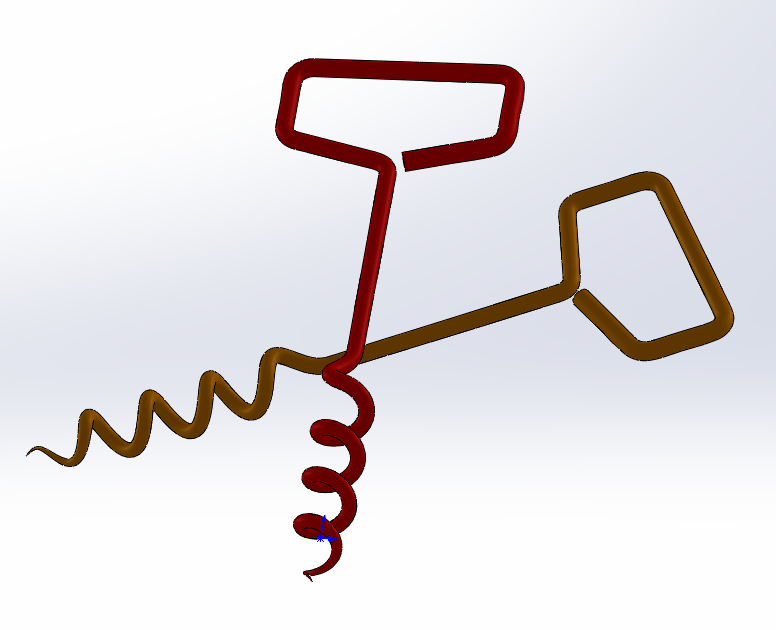

Step #14.Finish
