 How to create rope in solidworks

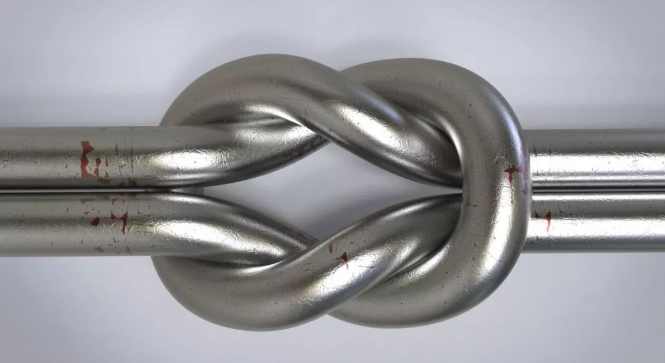

The shape we need to model today is one that resembles a rope knot.

The commands we need are the same basic commands used in surface modeling.

Let's get started with the tutorial.

step #1.On the front view, create the following sketch

step #2.On the top view,create the following sketch

step #3.Using the two sketches created above, create a projection cancellation

step #4.sweep--circular profile--31mm

step #5.mirror--Front plane

step #6.Insert--body-move/copy,Then move down the Y-axis by 15mm.

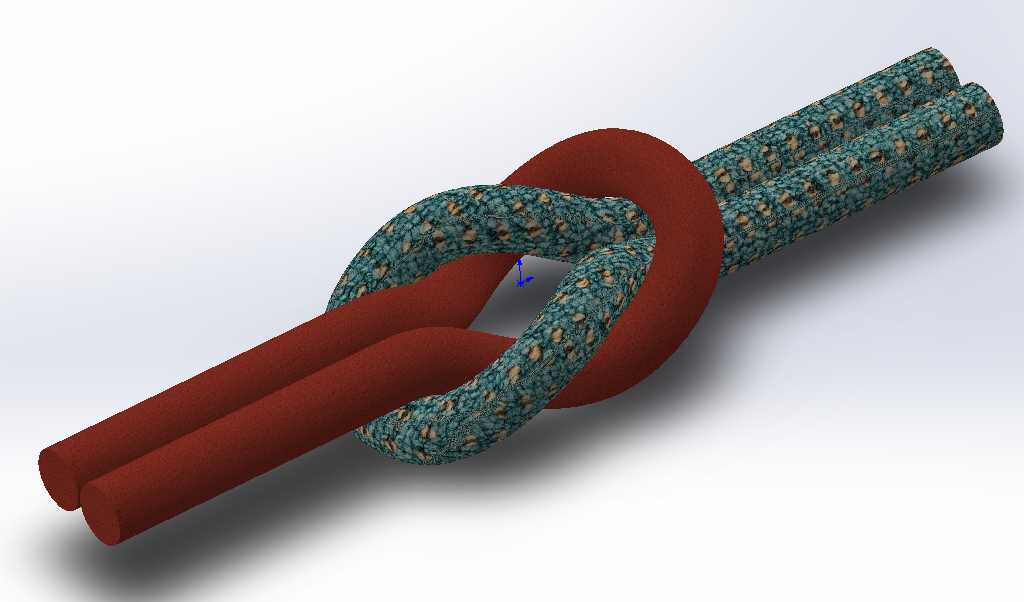

Step #7.Finish
