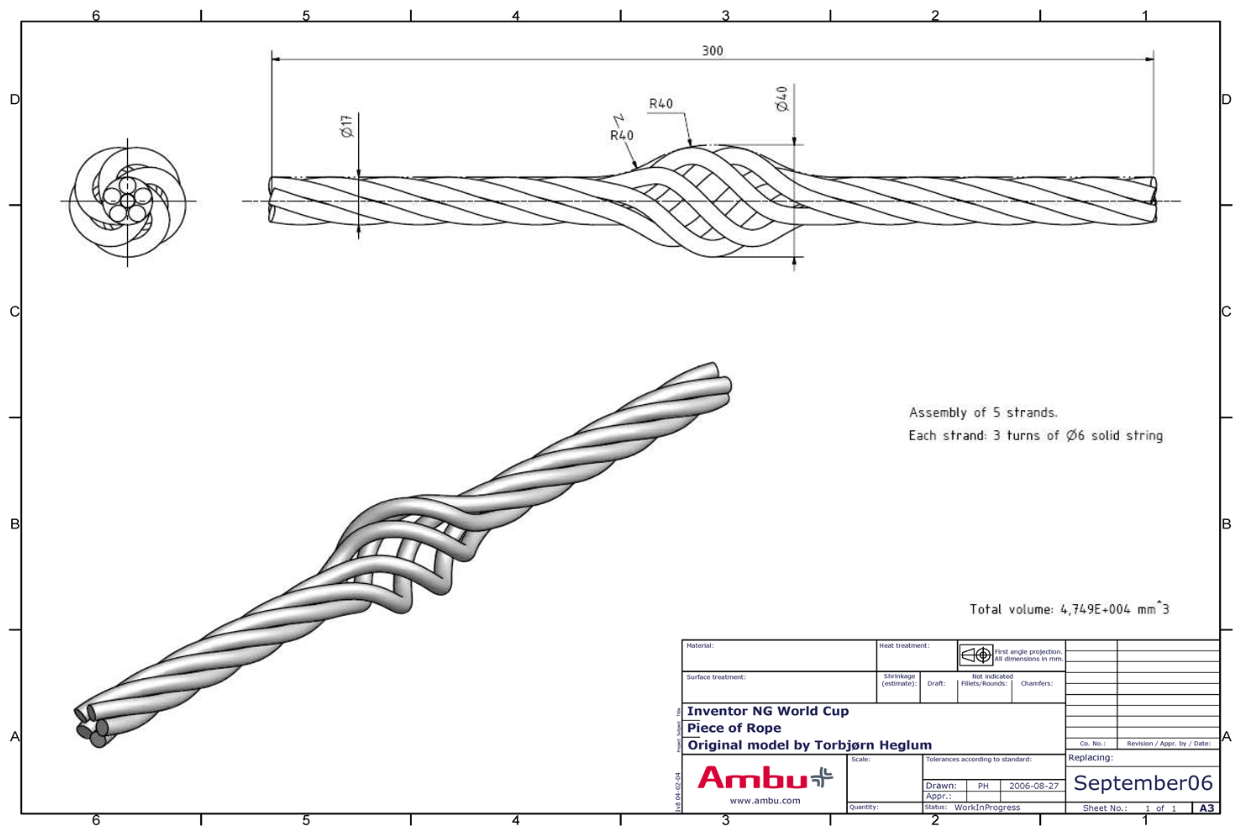

How to create Twisted steel wire in siemens NX

    Step #1.Create new sketch on the yz plane

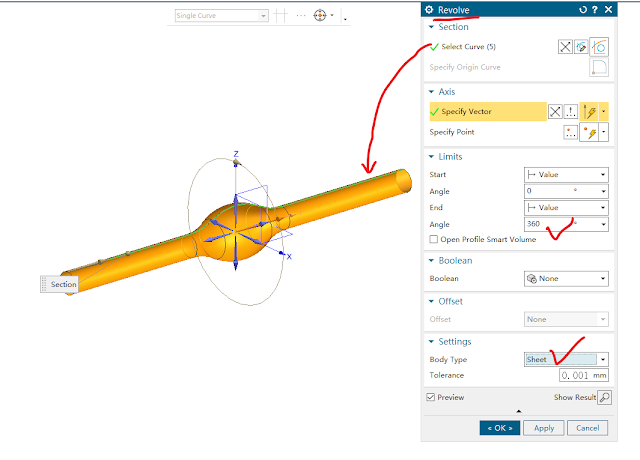

    Step #2.Revolve

    Step #3.Offset surface --3mm

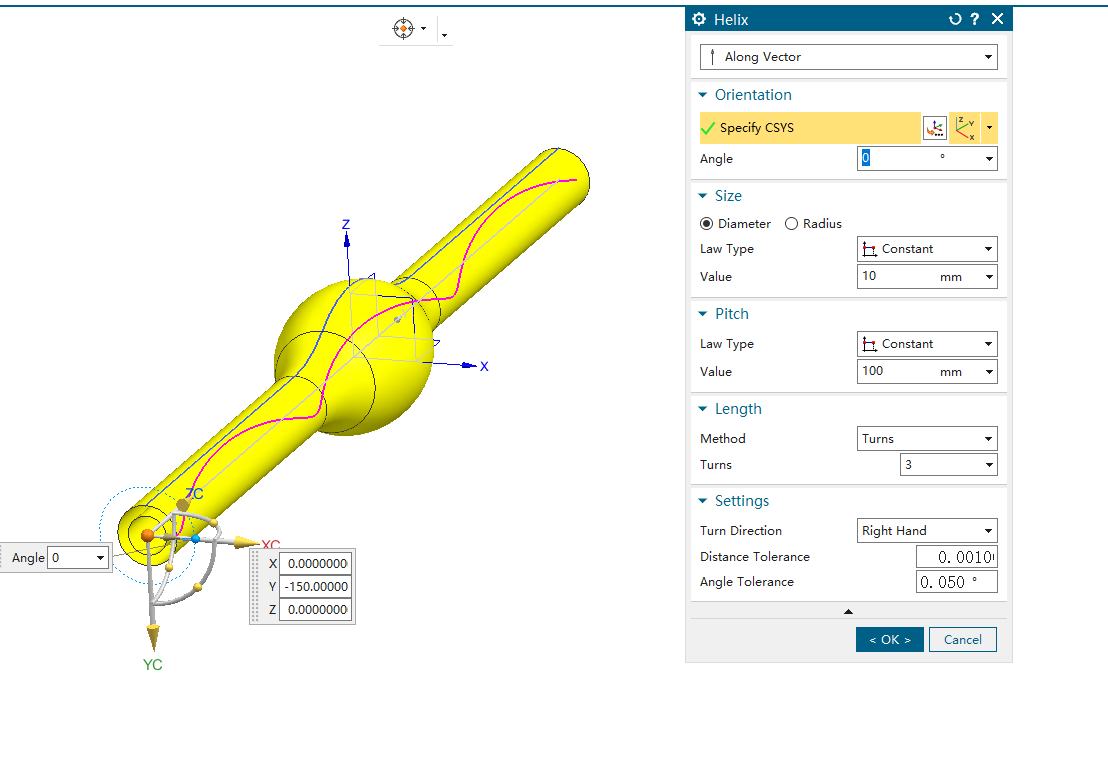

    Step #4.Helix

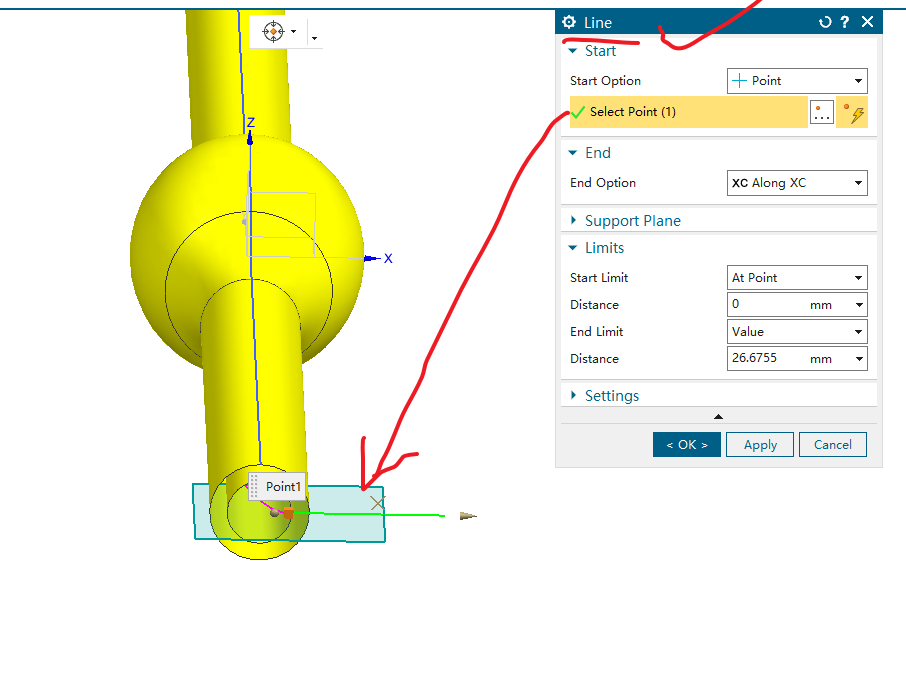

    Step #5.Curve--Line

    Step #6.Swept

    Step #7.Intersection curve

    Step #8.Tube

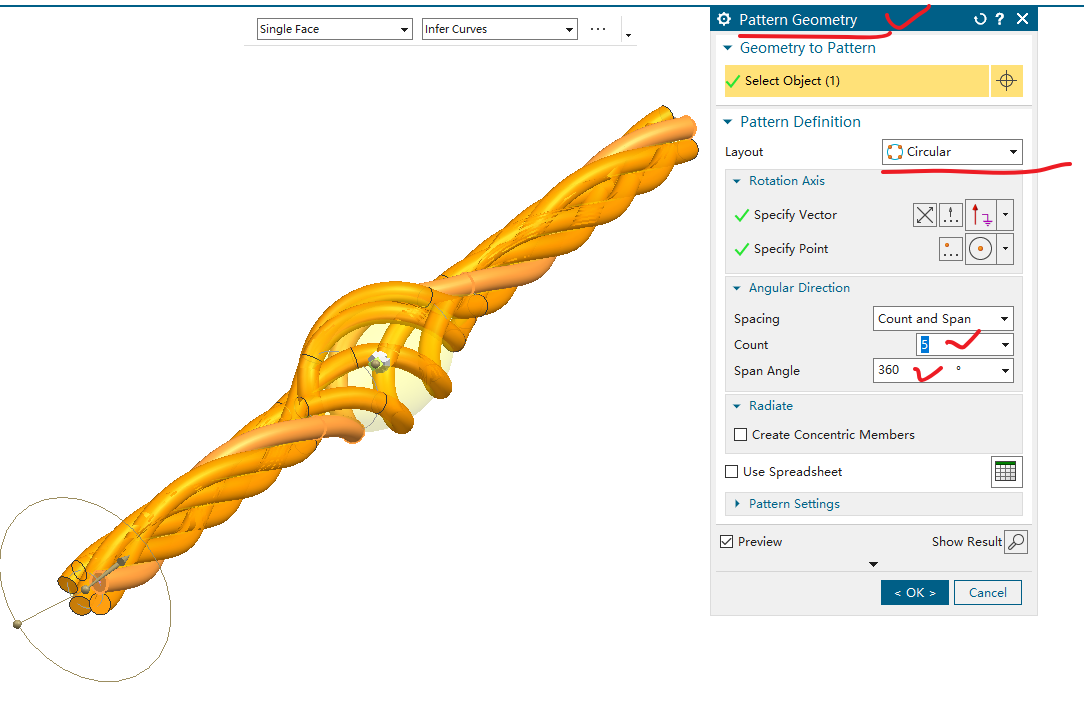

    Step #9.Pattern geometry
