How to create braided tube in siemens NX-031



 How to create braided tube in siemens NX

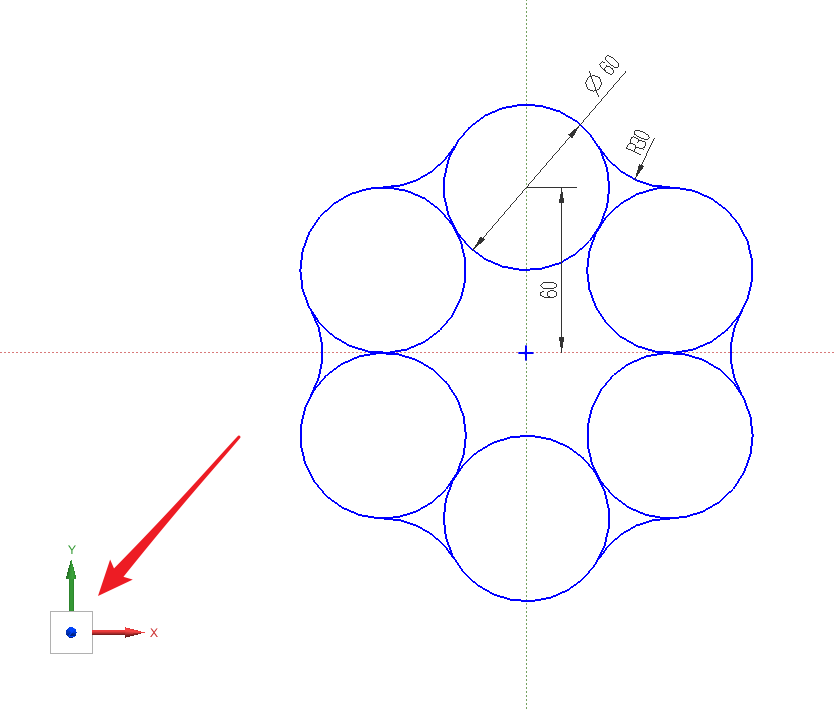

    Step #1.Create new sketch on the xy plane

    Step #2.curve--line--250mm

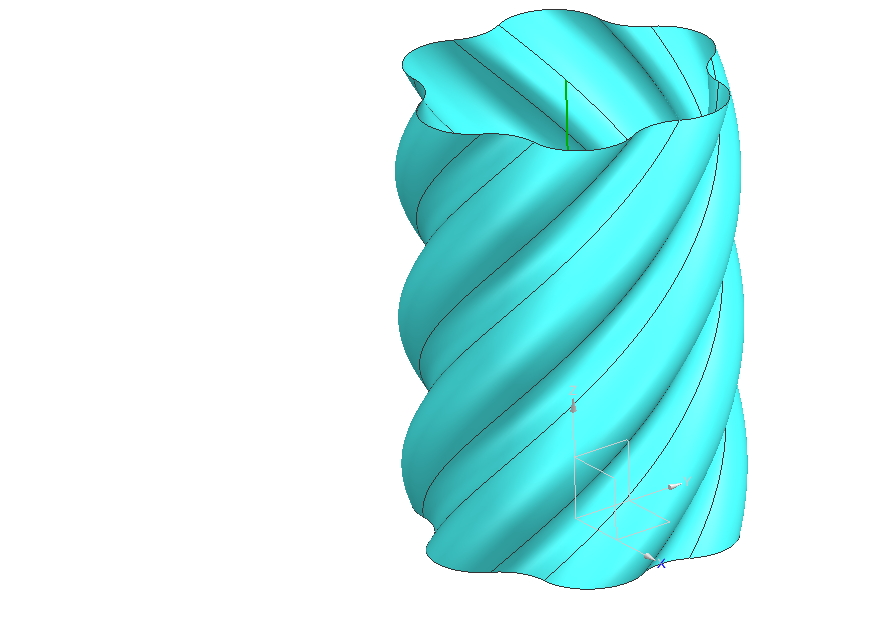

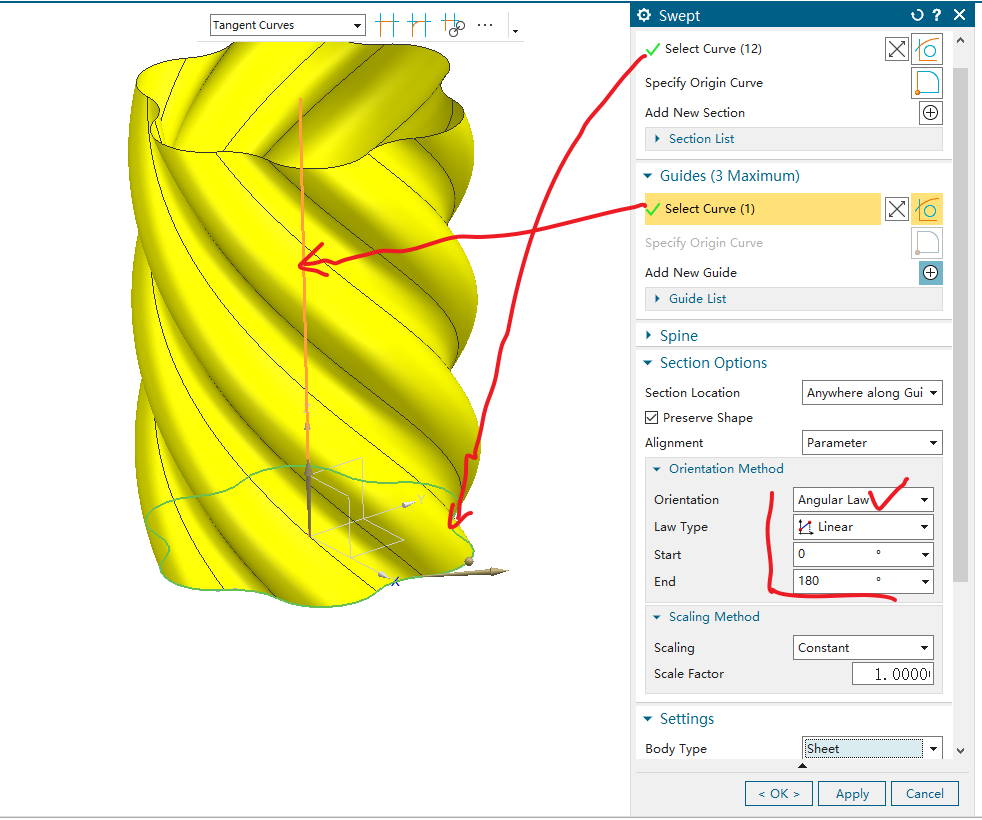

    Step #3.Swept---180

    Step #4.Swept---180

    Step #5.Move object--30

    Step #6.sketch on the xy plane

    Step #7.Swept -180

    Step #8.Swept--180

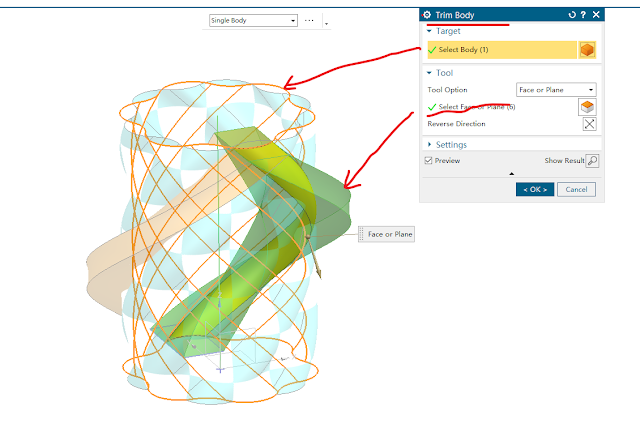

    Step #9.Trim body

    Step #10.Delete  body

    Step #11.Get two sheets and thicken--1mm

    Step #12.Pattern geometry
