 How to create a Twisted Stool in solidworks

A twisted stool, such as the one pictured above, is modeled in SolidWorks software and can be used directly with the twist command. In today's installment of the tutorial, we don't use the distort command, we model it in a different way.

    Step #1.create new sketch on the top plane;

    Step #2.create new sketch on the right plane;

    Step #3.surface-loft

    Step #4.thicken--5mm

    Step #5.Move/copy body

    Step #6.combine

    Step #7.fillet--8mm

    Step #8.shell--1mm

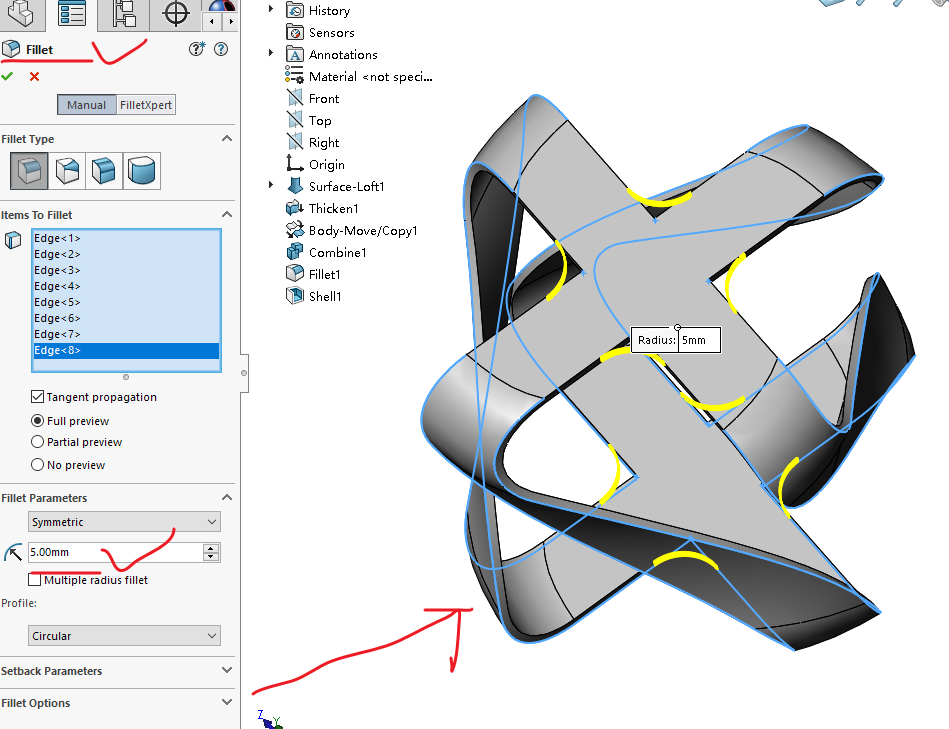

    Step #9.fillet2--5mm

    Step #10.create hole--5mm

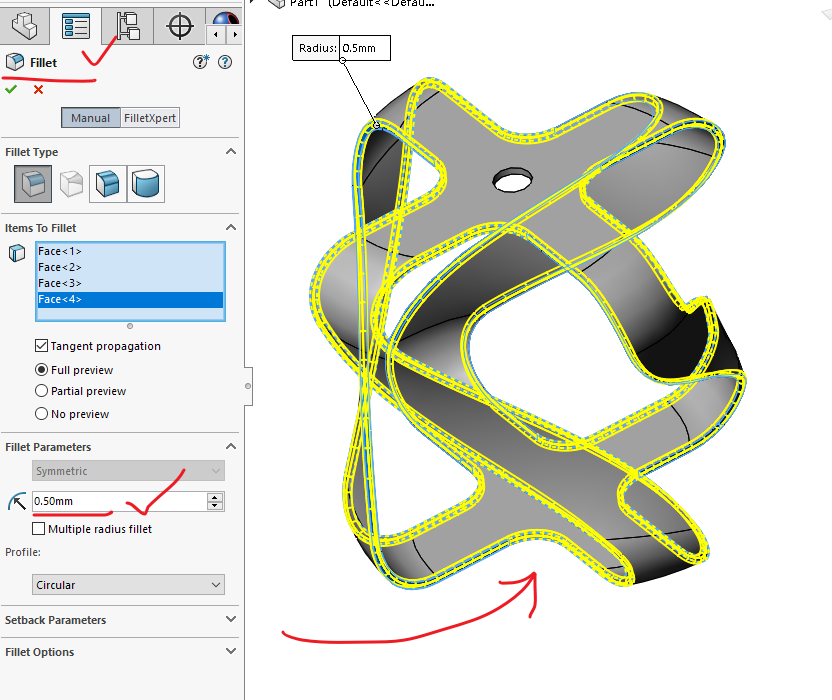

    Step #11.fillet-0.5mm
