 How to  create Gold headdress in solidworks

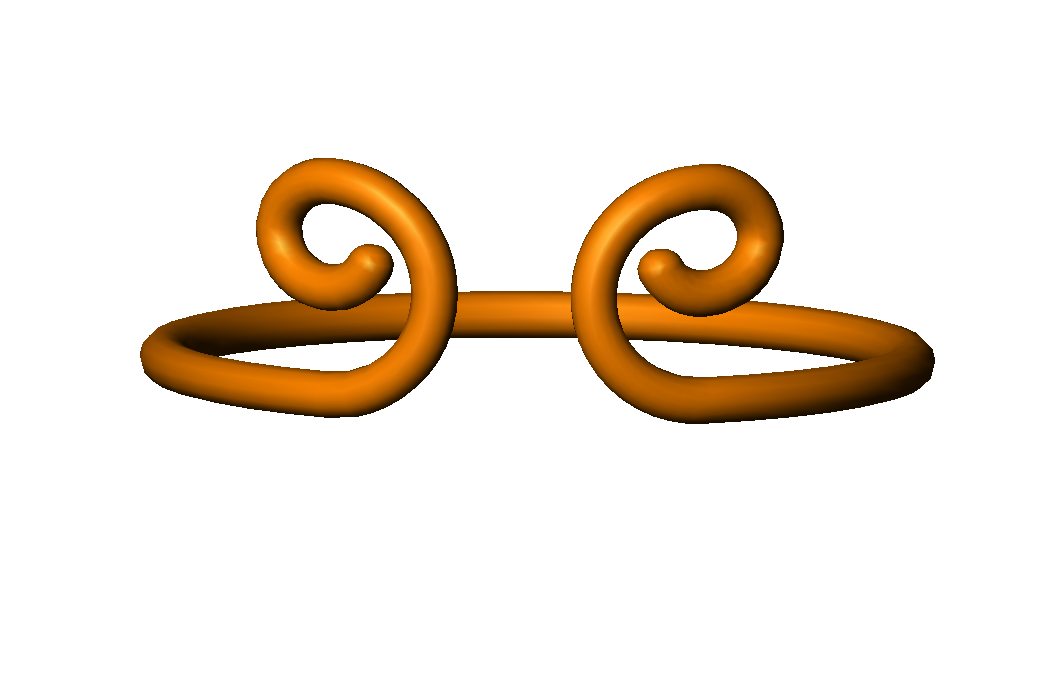

    This gold headdress is accomplished by sweeping through the curves.

Let's complete this look step by step.

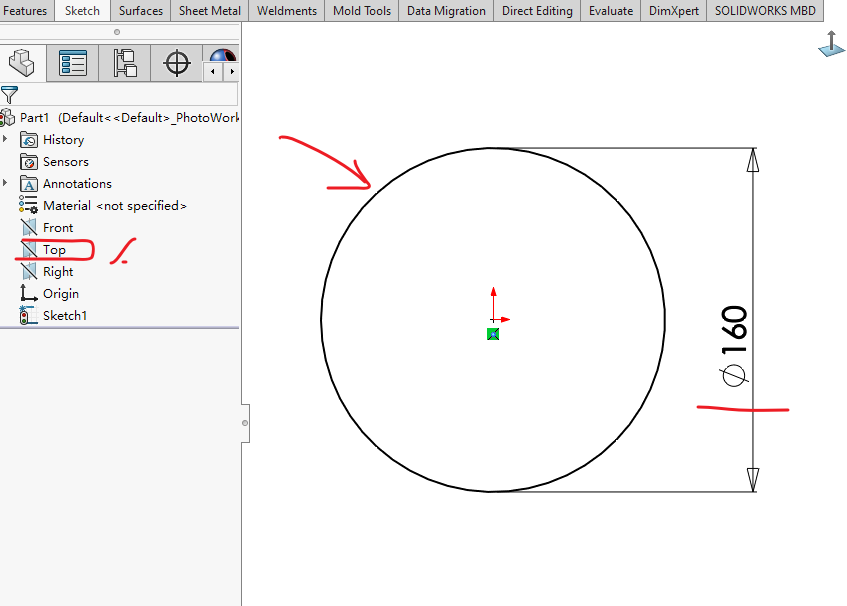

    Step #1. Create a sketch on the top plane,Dimensions are shown below.

    Step #2. Surface- Extruded   --100mm

    Step #3.Create a sketch on the top plane,Dimensions are shown below.

    Step #4.Projected Curve--sketch on faces

    Step #5.3D Sketch--Convert to convert--tirm curves

    Step #6.Sweep-10mm

    Step #7. Fillet  -3MM
