How to create woven network in siemens NX -034



How to create woven network in siemens NX

    Step #1.sketch on the yz plane

    Step #2.Bridge curve

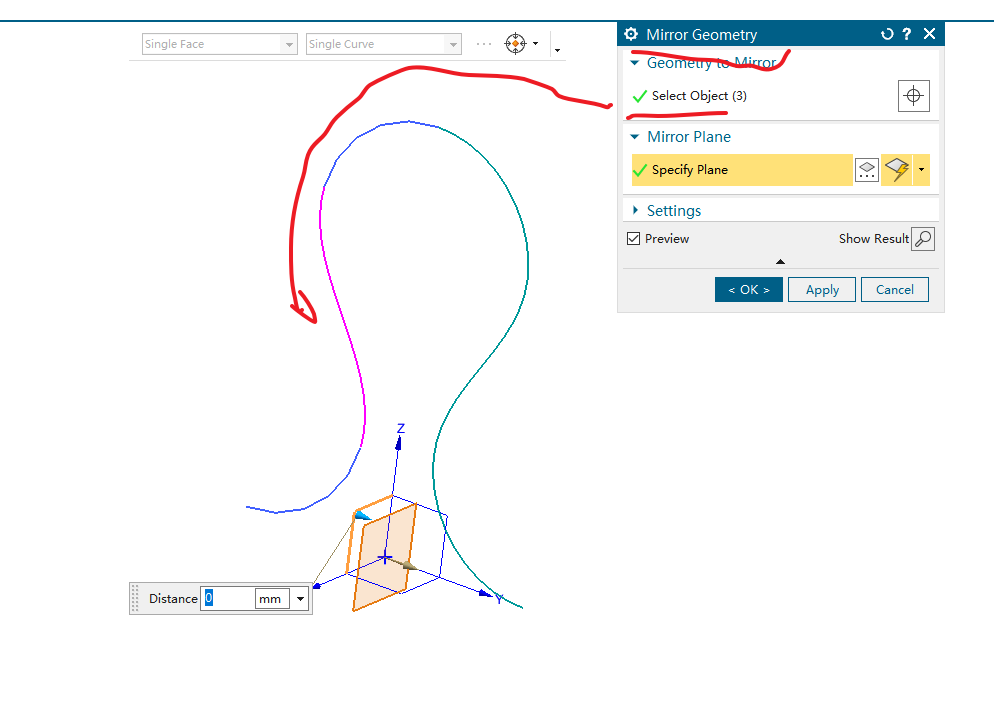

    Step #3.Mirror geomety

    Step #4.sketch on the xz plane

    Step #5.combined projection

    Step #6.tube

    Step #7.Pattern geometry

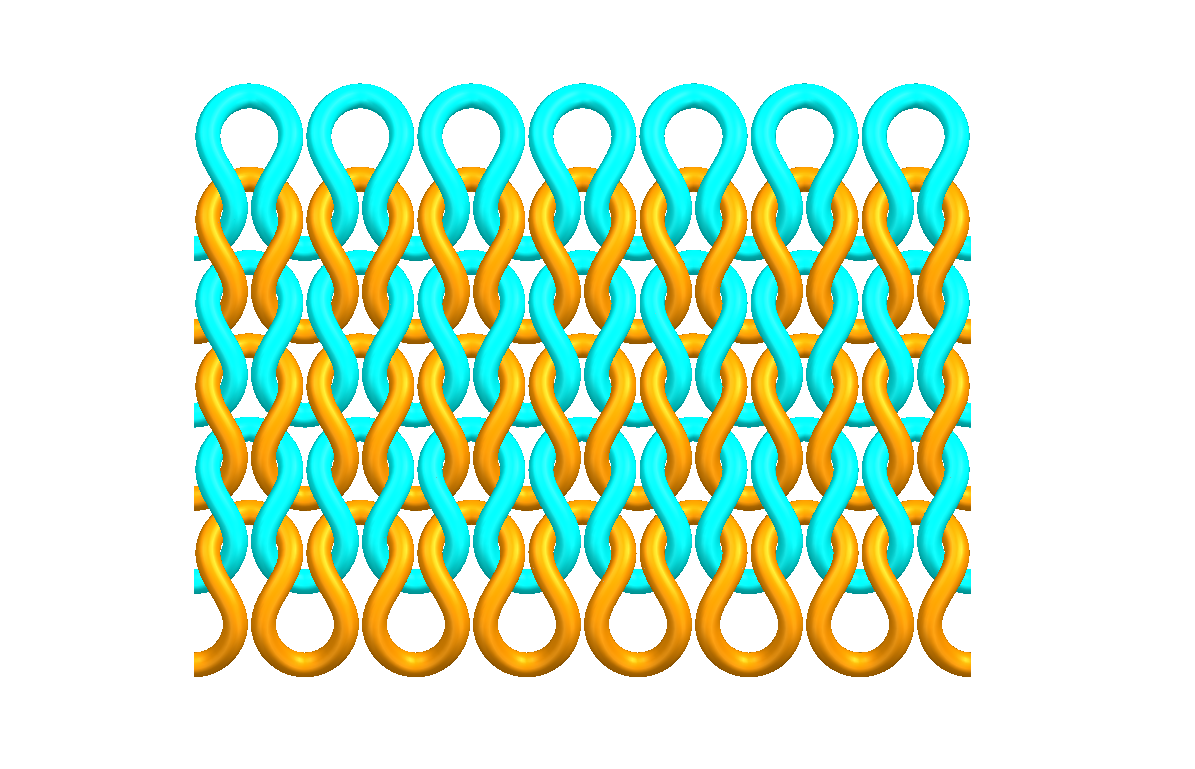

    Step #8.Finish
