How to create oloid surface shape in siemens NX-027



How to create oloid surface shape in siemens NX

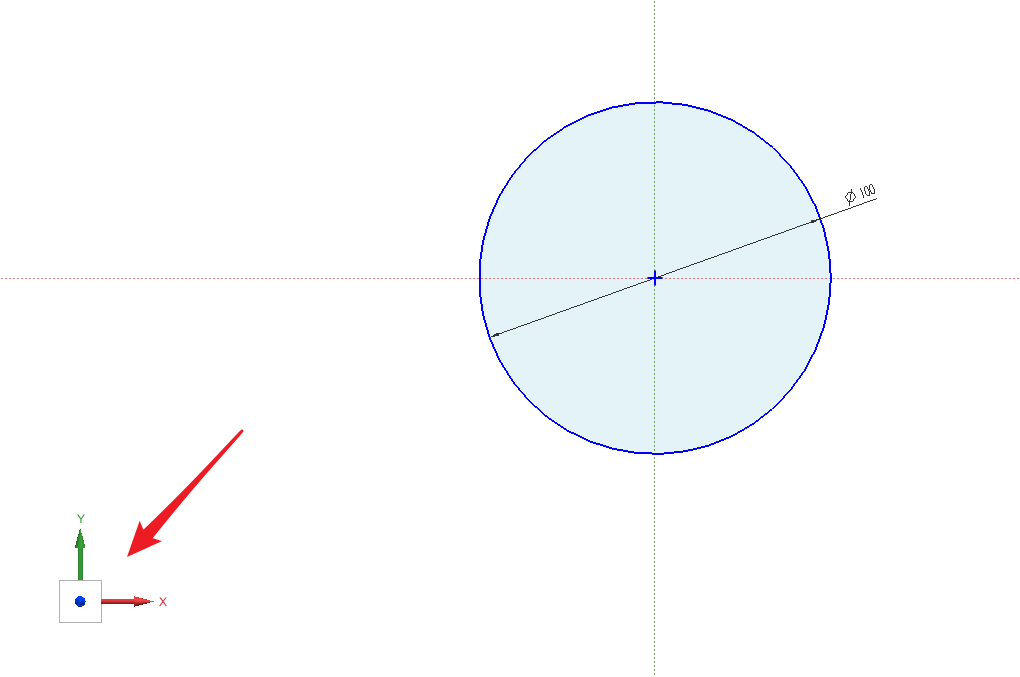

    Step #1.create new sketch on the xy plane and Extrude

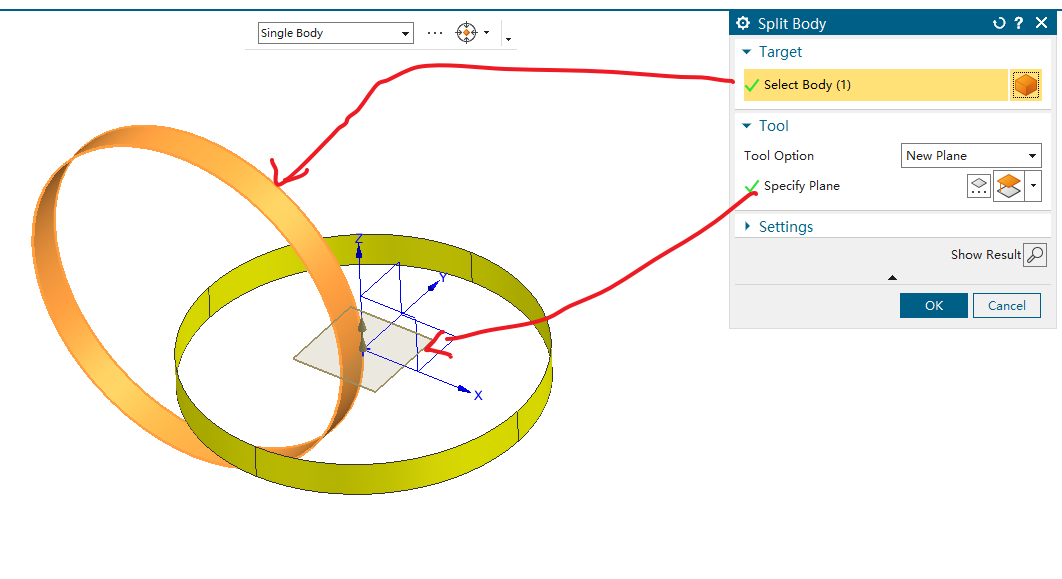

    Step #2.Split body

    Step #3.create new sketch on the xz plane and Extrude

    Step #4.Split body

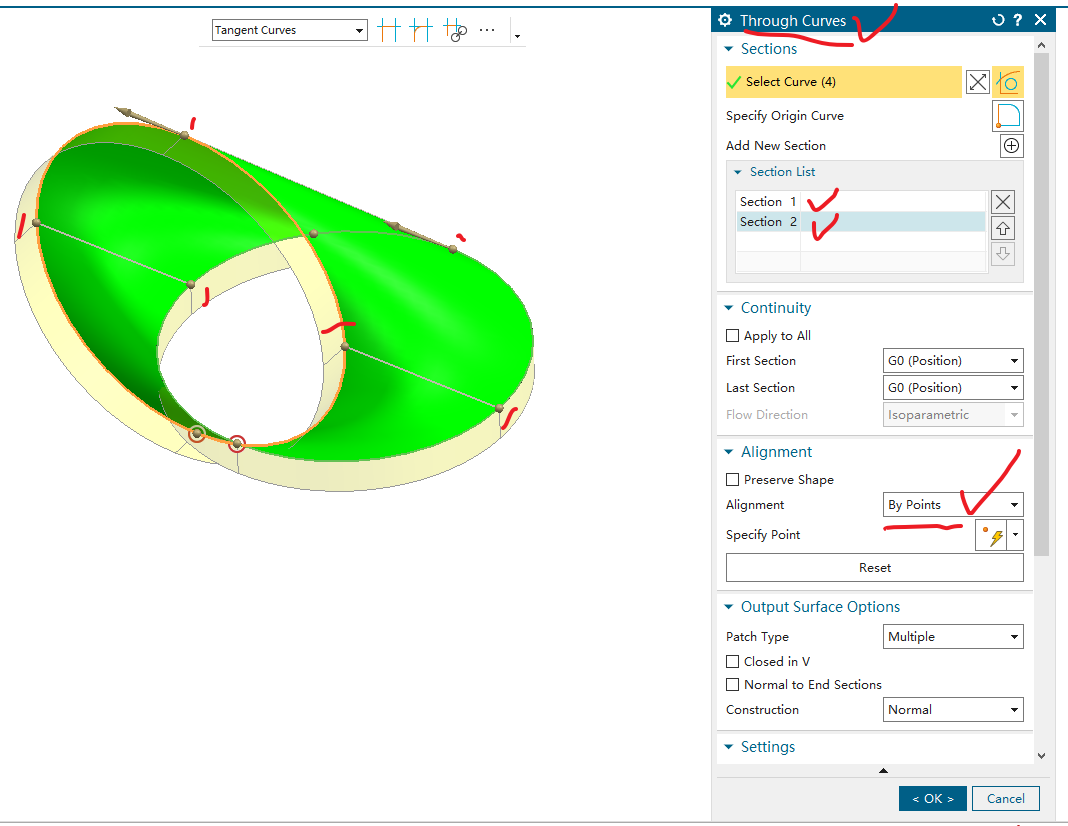

    Step #5.Through curves--alignment(by points)

    Step #6.Thicken

    Step #7.Face blend
