How to create bracelets in siemens NX

    Step #1.Create new datum plane

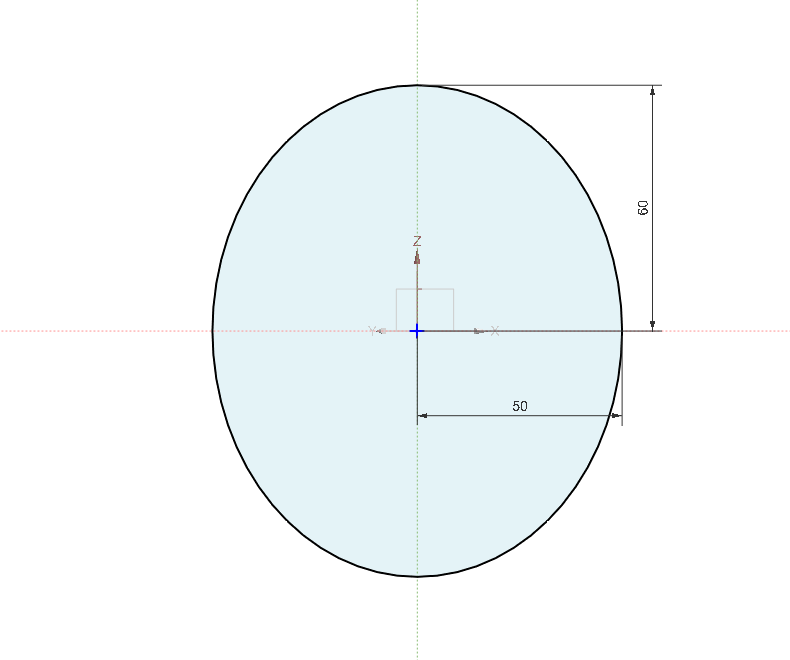

    Step #2.sketch on the new datum plane

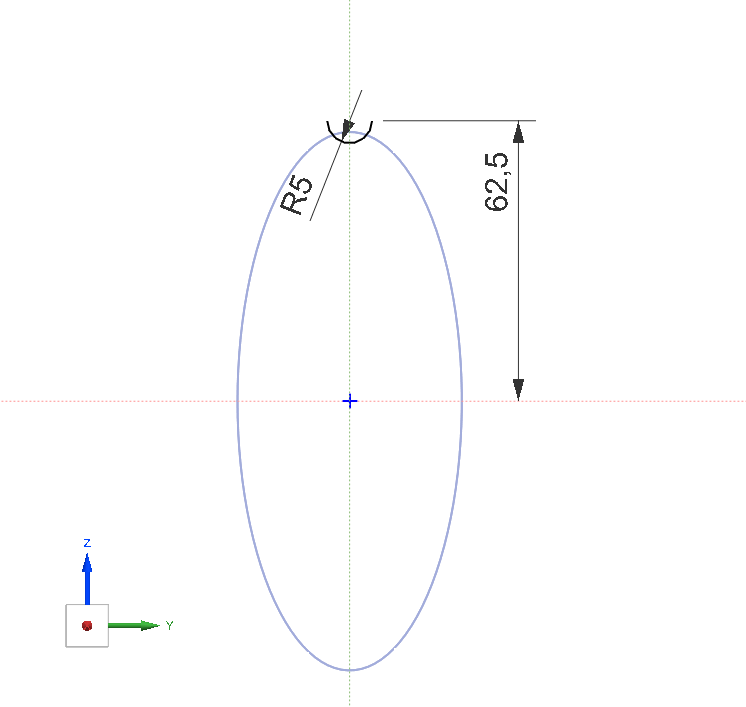

    Step #3.sketch on the yz plane

    Step #4.extrude

    Step #5.sketch on the xz plane

    Step #6.extrude

    Step #7.Intersection curve

    Step #8.Tube-3.5

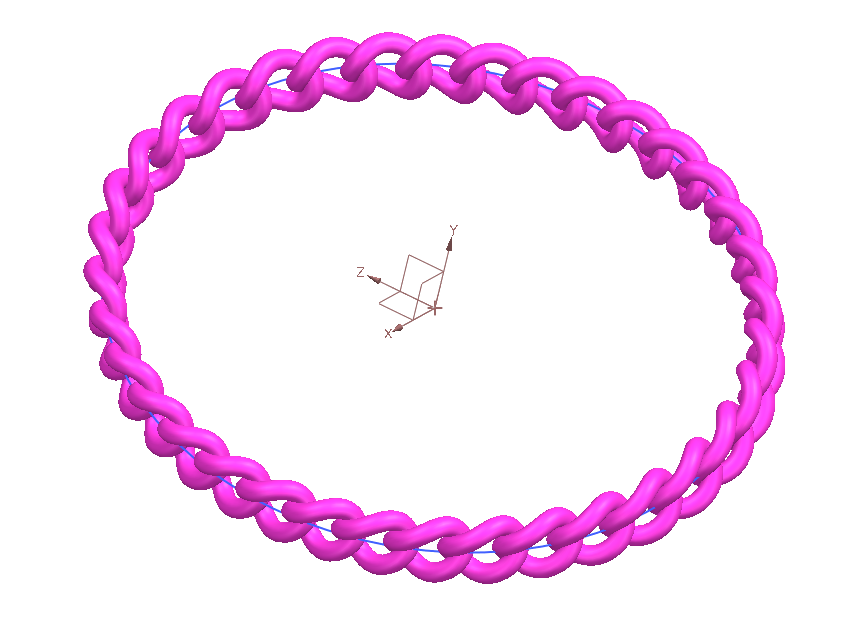

    Step #9.Pattern geometry
