How to Create Simple Models in SolidWorks Using the Loft Command-020



How to Create Simple Models in SolidWorks Using the Loft Command

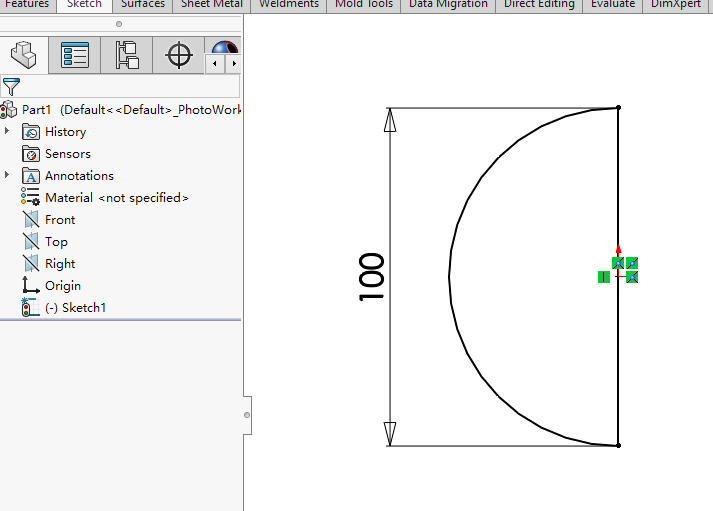

    Step #1.create a new sketch on the top plane

    Step #2.boss-extrude--20mm

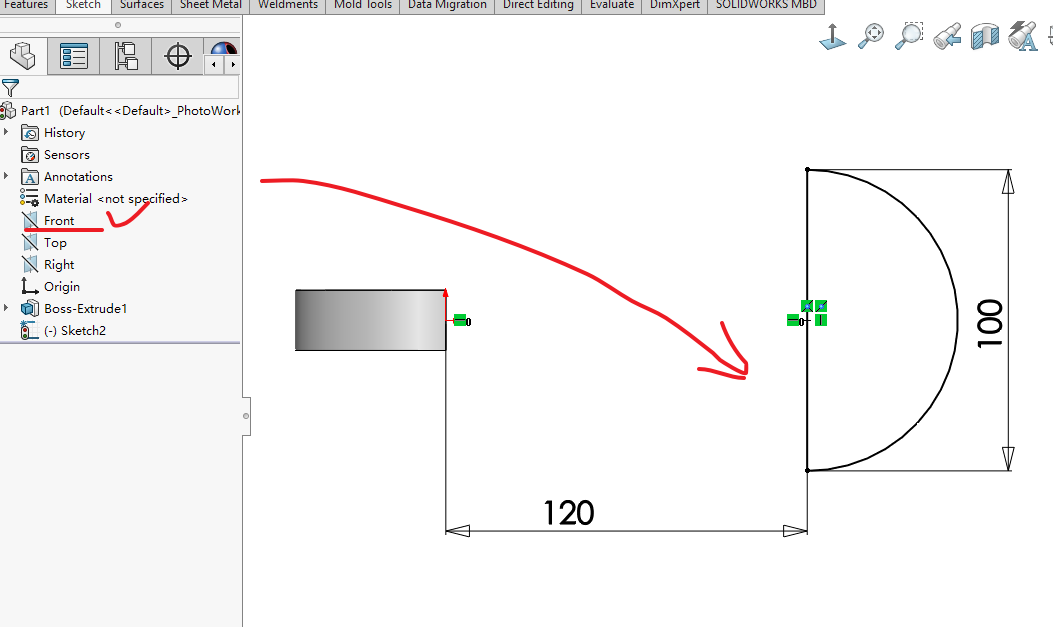

    Step #3.sketch on the front plane

    Step #4.bass-extrude--20mm

    Step #5.Loft--profiles(faces)--normal to profile

    Step #6.sketch on the top plane

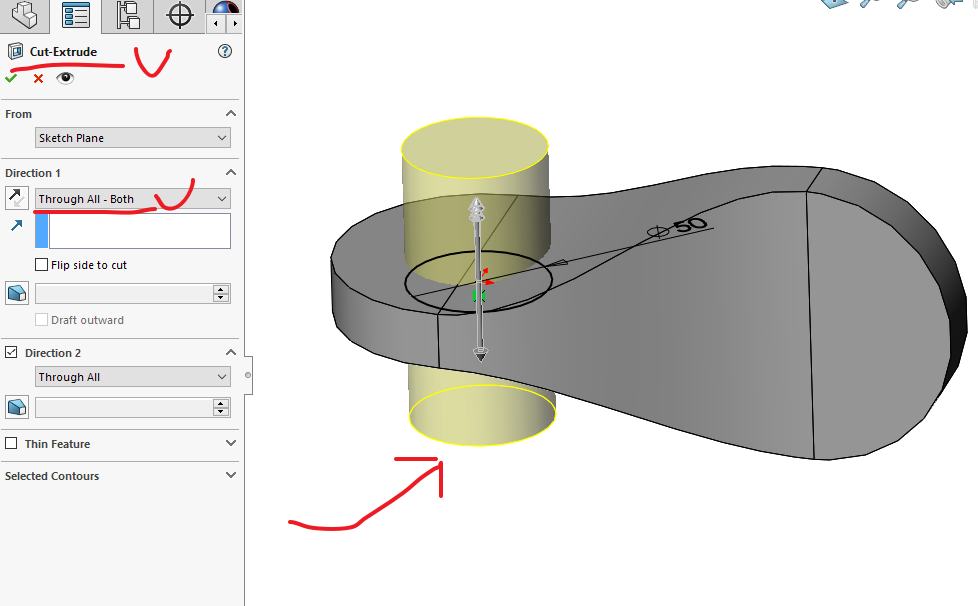

    Step #7.Cut-extrude

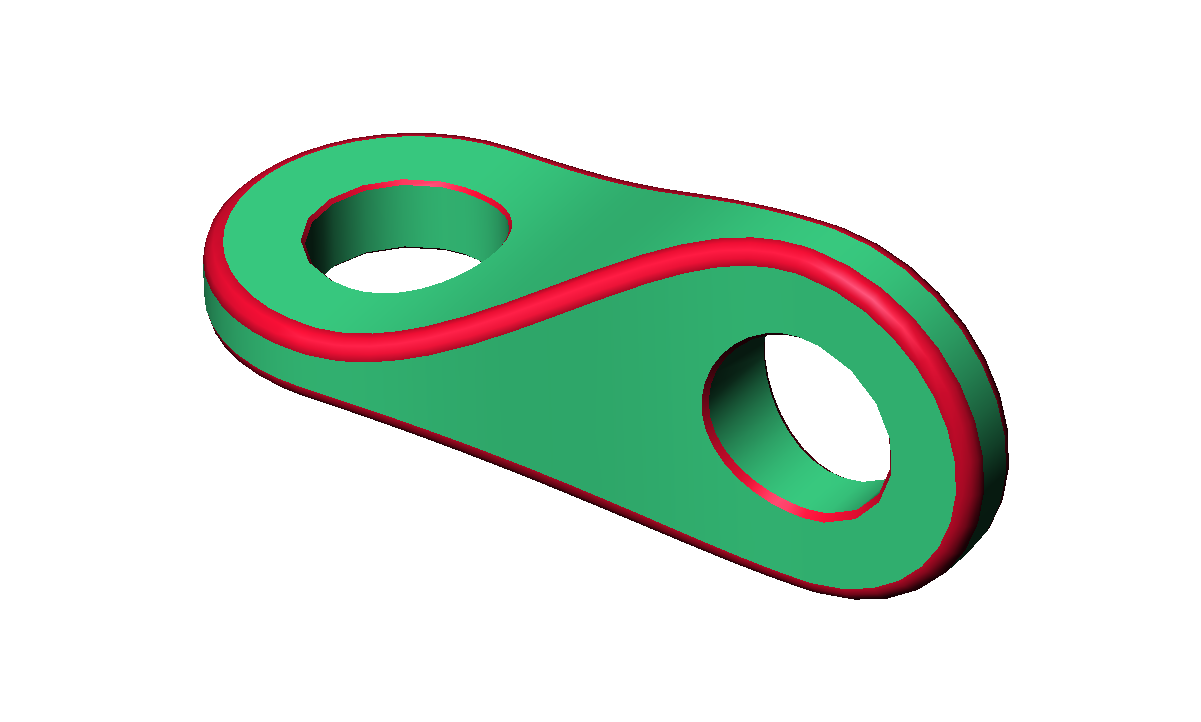

    Step #8.Filet
